Konica Minolta Aero DR 14x17in Cesium Iodide Detector

Call for Pricing Email for Pricing

Prices subject to change

Add to favorites
SKU: 1417HQ Categories: , , , , , , , , , , , , , , Tag:

This product could pertain to the California Proposition 65. Click to learn more.

Description

AeroDR1417HQ is a 14″ x 17″ Cesium Iodide detector that is easy to handle|which makes it convenient for multi-room use.

Specifications

World’s Lightest Weight (including battery) (2.9kg) This 14″x17″ Cesium Iodide detector is easy to handle making it especially convenient for multi-room use.

Scintillator Direct-Contact Technology

Konica Minolta succeeded by creating a new technology whereby a CsI scintillator is made to contact directly over a TFT＊1 sensor panel without any protective layer in between them. This technology has made it possible to guide the light emitted from the scintillator to the photodiode without causing the light to be dispersed at the interface with the TFT sensor.

  • Scintillator       Cesium Iodide (CsI)
  • High Image Quality with spatial resolution of 175 μm Limiting resolution:3.5 lp/mm
  • Pixel matrix: 1996 x 2434
  • Wide active area of 13.7″ x 16.7″
  • Wired dedicated communication or Wireless transfer of data
  • Dimensions:15.1″ x 18.1″ x 0.63″  Weight: 6.4 lbs. w/battery
  • Bit depth (A/D):16 bit A/D
  • Image display:< 4 sec. Cycle time:8-12 sec.
  • 1 Year Warranty

Acquisition Workstation

Konica Minolta Aero DR/CR CS-7 Console Acquisition Workstation

Product Code: CS-7

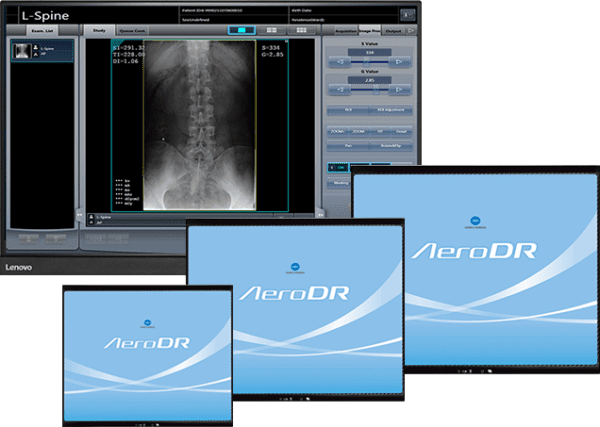

The AreoDR System combines the CS-7 console and highly durable Aero DR detectors to deliver unique solutions that increase economic value through high uptime and increased productivity.

Features:

CS-7 has multiple functions which provides you useful workflow.

  • Control AeroDR detectors and KonicaMinolta CR devices.
  • Send patient images to PACS and Dry Imagers.
  • Obtain examination information from RIS and sends back each result.
  • Link up X-ray exposure condition with X-ray console.
  • Write patient images on CD/DVD with DICOM, PDI and JPEG format.

CS7 Integrated Control Station

Technical Specifications:



REGIUS Model 110

Cassette Exposure Sizes:

  • 14 x 17″ (35 x 45 cm)
  • 14 x 14″ (35 x 35 cm)
  • 10 x 12″ (24 x 30 cm)
  • 8 x 10″
  • 18 x 24 cm
  • 15 x 30 cm

Maximum Resolution:
2010 x 2446 (14 x 17″)

Time required for IP feed/ load:
Min. 47 sec. (14 x 17″)

Processing capacity:  Up to 60 IPs/hr

Width: 29.1″ (74 cm)

Depth: 14.4″ (36.5 cm)

Height: 29.4″ (75 cm)

Weight: Approx. 220 lbs.

Power requirements:
AC 100-240 V ±10%; 50/60 Hz;
Approx. 700 VA or less



CS-7 Control Station

DICOM services:

  • DICOM Storage SCU
  • DICOM Print SCU
  • DICOM Modality Worklist Management
  • DICOM Storage Commitment SCU

Maximum resolution:

  • Up to 2 DICOM Store Plus 1 Backup
  • Up to 1 DICOM Print Plus 1 Backup

Image processing:

  • Automatic gradation processing (G processing)
  • Frequency processing (F processing)
  • Equalization processing (E processing)
  • Hybrid Processing (H processing)
  • Image storage capacity:
  • Approx. 5,000 images





Multimedia

Konica Minolta Aero DR Brochure
