Del Medical Universal Chiropractic System

Call for Pricing Email for Pricing

Prices subject to change

SKU: UCS-10 Categories: , , , , , , Tag:

This product could pertain to the California Proposition 65. Click to learn more.


Del Medical Universal Chiropractic System – Universal Chiropractic Systems are available in analog and digital configurations designed to deliver outstanding diagnostic imaging at a fraction of the cost. Designed for Chiropractic Care ​The Universal Chiropractic System effectively combines flexibility, efficiency and affordability. The system will instantly improve patient workflow by eliminating the use of cassettes and developing conventional x-ray film. Instead, Universal Chiropractic Systems are powered by the intuitive Vieworks DR system giving technologists access to high resolution digital imaging and processing capabilities.

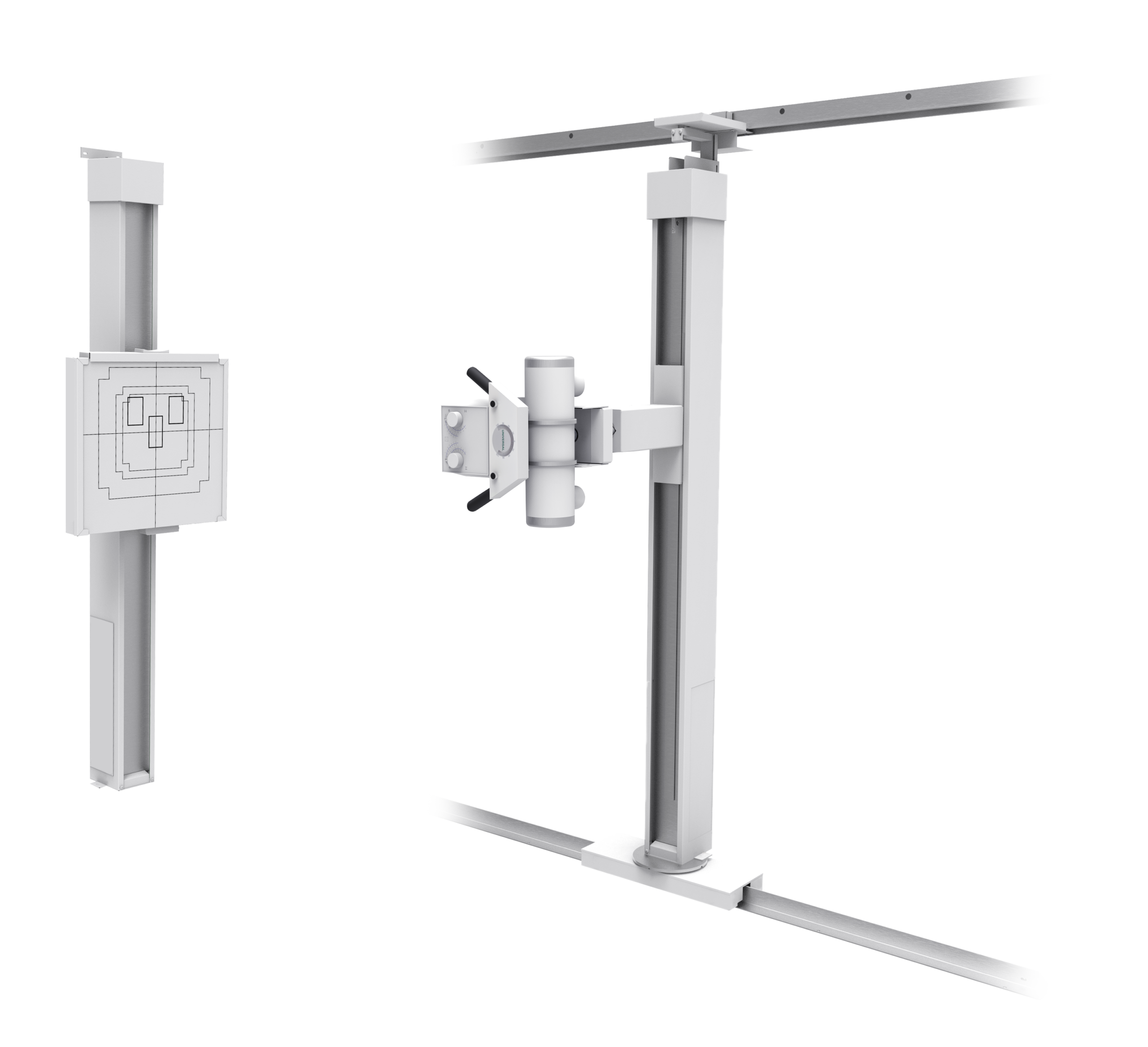

Expansive Movements  Featuring a floor-wall to floor-ceiling tube stand and a compact wall stand, the system delivers extensive vertical travel allowing for a full range of upright positions. The tube stand features electromagnetic brakes and a fixed positioned tube arm for easy and accurate positioning to the wall stand. Compact Wall Stand The slender VS100 wall stand can accommodate a wide variety of cassette-sized imaging solutions, making it perfect for traditional film, CR, and DR configurations.
This image has an empty alt attribute; its file name is VS100Front.27-640x1024.png
Del Medical VS100 Wall Stand
See Every Detail Upgrade your Universal Chiropractic system with our most affordable digital system option — Vieworks DR. Vieworks’ VXView image acquisition software produces exceptional clarity and resolution, perfect for chiropractic spine studies. Images can be sent to PACS, which possesses powerful tools capable of a variety of chiropractic specific image enhancements.
This image has an empty alt attribute; its file name is Vieworks-1024x621.png
VieWorks DR Digital System


Chiropractic Tube Stand:

Ceiling height:                       Minimum 96″ (244 cm), Maximum 116″ (295 cm) ​Vertical travel:                       Minimum 12″ (26.5 cm), Maximum 73″ (189 cm) ​Longitudinal travel:                96″ (244 cm) with 8 ft. rail ​Rail longitudinal length:        8 ft. standard. 12 ft. and 6 ft. optional ​Transverse travel:                  9″ (23 cm) ​Column rotation:                    ±180° with detents 0°, 90°, 90° ​Tube rotation:            +180°, -180°

VS100 Wall Stand:

Height (w/ vertical travel):      86″ (220.4 cm) Depth:             13″ (33 cm) Receptor width:         23.3″ (59 cm) Receptor height:       23.4″ (59.4 cm) Weight (with receptor):        258 lbs. (117 kg) Max. focal spot height:          72.4″ (183.8 cm) Min. focal spot height:           14″ (35.6 cm) Power requirements:            24 VDC, 1.25 max. momentary amps
