Veterinarian DR / X-ray Integrated System Packages
Are you looking for a DR / X-ray Integrated System Package? Check out the available options below and click on the image to learn more! If you have questions please either contact us or ask us in the chat box in the bottom right of your screen!
.
.

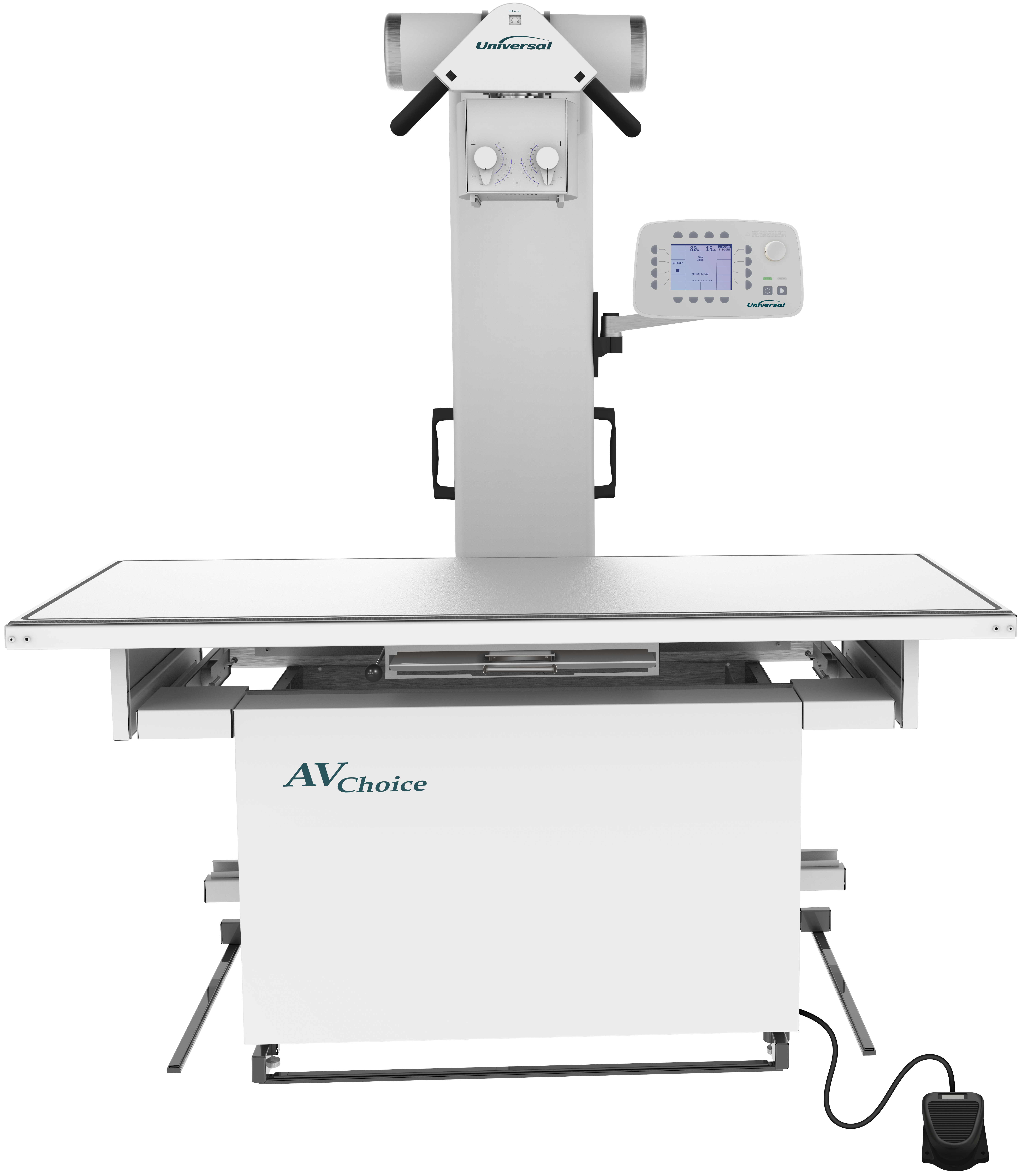

Del Medical Universal Veterinary System UVS-10
- Expandable Movement – angulating tube arm, 2-way or 4-way float top table
- Can be configured with a fixed or variable SID tube stand
- Urine trap along perimeter of the table for easy cleanup
- Easy to reach operator footswitch/treadles on all sides
- Analog and Digital configurations
- Vieworks’ VXView image acquisition software
VAW 17X17 DR PANEL
- Detector Size: 17 x 17 in (43 x 43 cm)
- Scintillator: Cesium Iodide (CsI)
- Connection Type: Tethered/Wireless
- Pixel Matrix: 3072 x 3072
- Pixel Pitch: 140 μm
- Dimensions: 18 x 18 x 0.6 in
- Weight: 7.6 lbs (one battery) 8 lbs (two batteries)
- Bit Depth (A/D): 16-bit
- Image Display: 3 seconds
- Cycle Time: 4 seconds
- Limiting Resolution: 3.5 lp/mm
- Battery: Lithium Ion 3,400 mAh x2
C-FPT (Cassette Size Flat Panel) DR PANEL
- 5 Year Warranty
- Fixed Tethered Interface
- Pixel Size: 139µm
- Line pair per mm: 3.6 lp/mm
- AD conv. 16-bit
- Image Sensor: a-Si (amorphous Silicon) TFT
- Scintillator Type: FP: CSI (Cesium)
- Pixel Matrix: 3072×3072
- Active Area: 16.81″x16.81″
- Dimensions: 18.1×18.1x.59in
.
.
.
.
.
.
.
.
.
.
.
.
